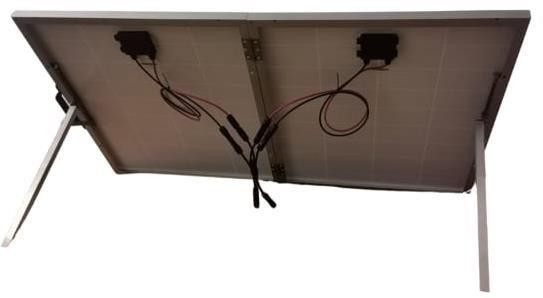

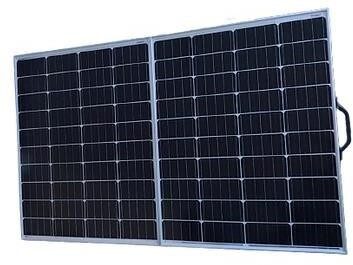

E100T- 200W Prime MONO Foldable Solar Panel

TYPICAL PERFORMANCE CHARACTERISTICS
Typical Power (Wp)
Tolerance (%)
200W
Voltage at Max Power (Vmp)
+- 5
20.30V
Current at Max Power (Imp)
Open Circuit Voltage (Voc)
9.86A
24.50V
Short Circuit Current (Isc)
10.32A
Standard Test Conditions: 1000W/m2, AM1.5 and 25 oC
TEMPERATURE COEFFICIENTS
Temperature Coefficients (Pmax) – 0.45% / oC
Temperature Coefficients (Voc)
Temperature Coefficients (Isc) – 0.33% / oC
0.06% / oC
Nominal Operating Cell Temp (NOCT)
45 +- 80 oC
CELLS
Type
Monocrystalline
Dimensions
Layout
36 cells x 2
GENERAL INFORMATION
Maximum System Voltage
715Vdc
Output Cables
Frame
Packaging
Anodized Aluminum Alloy
1 Foldable Module Per Carton Box
WARRANTY LOCALLY SUPPORTED
Construction
Power Output
1 Years
Terrestrial: 3 Years / 80% Yield
Marine: 1 Years / 80% Yield
MECHANICAL SPECIFICATIONS
Dimensions (Open)
900mm x 1165mm x 25mm
Dimensions (Close)
900mm x 580mm x 50mm
Weight
12kg
