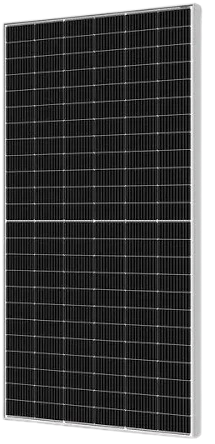

MONO crystalline Solar Module
TYPICAL PERFORMANCE CHARACTERISTICS
Typical Power (Wp): 460W
Tolerance (%): +- 3
Voltage at Max Power (Vmp): 34.8V
Current at Max Power (Imp): 13.24A
Open Circuit Voltage (Voc): 41.4V
Short Circuit Current (Isc): 14.00A
Standard Test Conditions: 1000W/m2
, AM1.5 and 25 oC
TEMPERATURE COEFFICIENTS
Temperature Coefficients (Pmax) – 0.34% / oC
Temperature Coefficients (Voc) – 0.26% / oC
Temperature Coefficients (Isc) 0.05% / oC
Nominal Operating Cell Temp (NOCT) 41 +- 3 oC
CELLS
Type: MONO crystalline
Layout: 36 Cells
GENERAL INFORMATION
Maximum System Voltage: 1000Vdc
Frame Anodized Aluminum Alloy
Packaging: 2 Modules Per Carton Box
WARRANTY LOCALLY SUPPORTED
Construction: 10 Years
Power Output Terrestrial: 20 Years / 80% Yield
Marine: 10 Years / 80% Yield
MECHANICAL SPECIFICATIONS
Dimensions: 1903mm x 1134mm x 30mm
